Tread Grip Plank Safety Grating

Tread Grip Plank Safety Grating

Tread Grip Plank Safety Grating is appropriate for commercial & industrial applications where pedestrian traffic is a consideration. This plank safety grating is perfectly suited for ADA-compliant requirements and is easily adapted for a multitude of applications, offering a safe walking-working surface for walkways, ramps, stair treads, and equipment platforms.

RESOURCE LIBRARY DOCS & SPECS    FABRICATION SERVICES

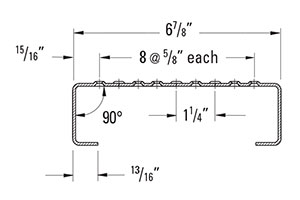

Width 7″ (6 7/8” Actual)

Traction-Tread-Safety-Grating-Plank-7inTraction-Tread-Safety-Grating-Plank-7inch

Plank Lengths:

  • 120” and 144” lengths (nominal)

Material Options:

  • Mill-galvanized steel: 11 gauge and 13 gauge
  • Aluminum alloy 5052-H32: .125”
  • Also available in Hot rolled, pickled and oiled carbon steel: 11 gauge and 13 gauge

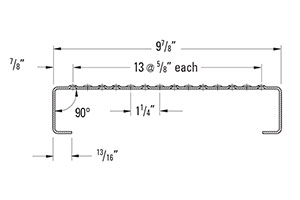

Width 10″ (9 7/8” Actual)

Traction-Tread-Safety-Grating-Plank-10inTraction-Tread-Safety-Grating-Plank-10inch

Plank Lengths:

  • 120” and 144” lengths (nominal)

Material Options:

  • Mill-galvanized steel: 11 gauge and 13 gauge
  • Aluminum alloy 5052-H32: .125”
  • Also available in Hot rolled, pickled and oiled carbon steel: 11 gauge and 13 gauge

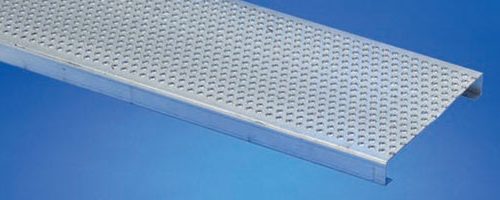

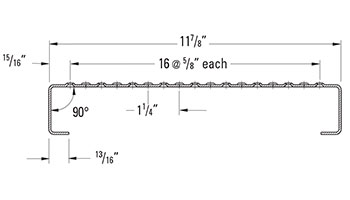

Width 12″ (11 7/8” Actual)

Traction-Tread-Safety-Grating-Plank-12inTraction-Tread-Safety-Grating-Plank-12inch

Plank Dimensions:

  • 120” and 144” lengths (nominal)
  • 11/2” minimum or 2” channel height
  • 3/8” hole diameter
  • Not available in sheets

Material Options:

  • Mill-galvanized steel: 11 gauge and 13 gauge
  • Aluminum alloy 5052-H32: .125”
  • Also available in Hot rolled, pickled and oiled carbon steel: 11 gauge and 13 gauge
  • LH (large hole) pattern

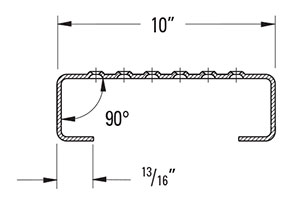

Width 10″, Large Hole

Traction-Tread-Safety-Grating-Plank-LH-10inTraction-Tread-Safety-Grating-Plank-LH-10inch

Plank Lengths:

  • 120” and 144” lengths (nominal)

Material Options:

  • Mill-galvanized steel: 11 gauge and 13 gauge
  • Aluminum alloy 5052-H32: .125”
  • Also available in Hot rolled, pickled, and oiled carbon steel: 11 gauge and 13 gauge

Your Best Supplier of Gratings

Marco Specialty Steel is proud to be a Tread Grip safety grating supplier and fabricator of the most comprehensive line of safety grating products including Diamond Safety Grating, Perf Safety Grating, and Tread Grip with slip-resistant surfaces.

We are also the number one go-to for grating products, therefore we stock bar grating and fiberglass grating. Need a certain size? We can customize your grating too.

Learn More About Our Tread Grip Plank Safety Grating

Set your Tread Grip plank grating project in motion right now by contacting our friendly, knowledgeable technical sales staff. We’ll be happy to discuss your specific customization needs.

Marco Specialty Steel: Quality. Speed. Reliability.
