Stadion Grating Panel Technical Details
*Not all configurations and sizes are in stock.
- Dimensions: Mesh 124 x 100 (top panel), Mesh 124 x 50 (bottom panel), Horizontal flat bars 25 x 3 mm, Vertical round bars Ø 4.5 mm
- Material: S235JR UNI EN 10025 steel
- Coating: Hot-dip galvanizing according to UNI EN ISO 1461, Polyester powder coating
- Colors: RAL 6005 green, other RAL colors available on demand
- Fixing system: TTQST M10 x 30 security bolts in stainless steel
- Posts: IPE100
- Safety Gates: Built in compliance with the applicable laws on partitions in football grounds and stadiums
Product Specifications
Stadion welded grating fence responds to the push loads forces foreseen in the norm UNI EN 13200 and it is made up of modular monolithic panels not jointed together. BOTTOM PANEL: height 933 mm, width 1995 mm, mesh 124 x 50 mm, 25 x 3 mm horizontal flat bars, Ø 4.5 mm vertical round connection bars, 25 x 3 mm drilled vertical sides frame bars. TOP PANEL: height 1174 mm, width 1995 mm, mesh 124 x 100 mm, 25 x 3 mm horizontal flat bars, Ø 4.5 mm vertical round connection bars, 25 x 3 mm drilled vertical sides frame bars. INCLINED TOP PANEL: height 540 mm, mesh 124 x 100 mm, 25 x 3 mm horizontal flat bars, Ø 4.5 mm vertical round connection bars, 25 x 3 mm drilled vertical sides frame bars. IPE100 post, length 2550 mm (or 2630+560 mm), drilled for connecting to the two panels and for anchoring the fence to the ground.
PANEL | POST | Post to be set in concrete | |||||||
---|---|---|---|---|---|---|---|---|---|
H | L | Weight | Section | Fixing points | L | Weight galv. | |||
mm | mm | kg/ea | kg/m2 | mm | n° | mm | kg/ea | ||
Without cranked top | 993 | 1995 | 20,1 | 10,8 | IPE 100 | 6 | 2550 | 22,7 | |
1174 | 1995 | 28,1 | 12,0 | ||||||
With cranked top | 933 | 1995 | 20,1 | 10,8 | IPE 100 | 8 | 2630 + 560 | 28,4 | |
1174 | 1995 | 28,1 | 12,0 | ||||||
539 | 1995 | 13,2 | 12,3 |
Applications

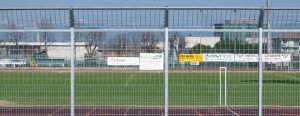

- Football field fence
- Sports centers
- Athletic grounds
- Sports facilities and stadiums
- Horse race tracks
- Car race tracks
