Prism 3-D Fence Panels
Betafence Prism 3-D Fencing
Attractive Low Maintenance Alternative to Chain Link

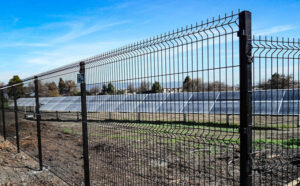

The Prism 3-D Fence System is engineered to secure perimeters such as parks, sports facilities, gardens, pools, and much more. Betafence Prism 3-D fence systems provide a high value, attractive security fence solution, and are now manufactured in the United States.
- Black PVC coated
- Discounted pricing for quality orders
3-D Prism Welded Wire Fence Benefits
- Quick and efficient rapid installation
- Offers high security mesh as part of an attractive security fence solution
- Durable welded wire mesh panels guaranteeing strength and rigidity
- With “V Folds” that provide lateral support, Prism does not require rails, selvedge wire or brace wires
- High-quality panels available in various heights
- Betafence’s exclusive Architectural Grade Powder Coat lasts up to 5 times longer than competitors’ powder coatings
- Attractive security fence solution
Prism 3-D Fence Panel Specifications
Prism 3-D panels have a width of 8′ and heights ranging from 4′ to 8′. The panels have vertical barbs of 1.2″ on one side and are reversible (barbs at top or at bottom). Mesh sizes are 6″ x 2″, and 4″ x 2″ for the beam sections. The heavy wires guarantee strength and rigidity.
| Panel Height ft. | Mesh Openings in. | Panel Width ft. | Wire Gauge | Number of Bends | Recommended Brackets Per Post |
| 4 | 2×6 | 8 | 6 | 2 | 3 |
| 5 | 2×6 | 8 | 6 | 3 | 4 |
| 6 | 2×6 | 8 | 6 | 4 | 5 |
| 8 | 2×6 | 8 | 6 | 4 | 7 |
Betafence Prism 3-D Fencing Key Features
Key features of Betafence Prism 3-D Fencing include:
- Three-Dimensional Design: The fencing panels are designed with a three-dimensional structure, which not only enhances the aesthetic appeal but also provides additional strength and rigidity.
- Superior Coating: To ensure resistance to rust and corrosion, Betafence’s exclusive Powder Coating guarantees a long service life for this fence system. This coating is applied over galvanized wires and tubes to ensure total protection of panels, posts and gates.
- Versatility: Prism 3-D Fencing can be used for a wide range of applications, including residential, commercial, and industrial settings.
- Security: The sturdy construction and design of the fence make it a reliable security barrier, deterring unauthorized access and providing an added layer of protection.
- Ease of Installation: Betafence products are often designed for easy installation, reducing the time and effort required for setting up the fencing system.
- Customization: Depending on the specific requirements of a project, Prism 3-D fencing may be available in different heights, colors, and mesh sizes, allowing for customization according to individual needs.
For more information about Betafence Prism 3-D Fencing, contact us today!
