Diamond Plank Safety Grating Specificationsgrip_strut_grating-diagram with sizes

  • Standard lengths – 10’ & 12’
  • Type 316 stainless steel available upon special request
    * Stainless only available in plank form and up to 11 3/4” wide
  • Relief hole available upon request on 3, 4, & 5-diamond planks
  • Special fabrication, cutting, or specialty configurations available upon request



Diamond-Grip Plank Surfaces Available:

Grip-Strut-safety-grating-Plank-standard-serrated-surface
Standard Serrated Surface
Grip-Strut-Plank-safety-grating-non-serrated-surface
Non-Serrated Surface
Grip-Strut-safety-grating-Plank-relief-hole
Relief hole available














2 Diamond Plank — 4 3/4” Width

2-Diamond-Plank

Grip-Strut-Plank-2-diamond; safety grating

Carbon/Galvanized Steel:

  • Gauge options: 14 or 12 gauge
  • Channel heights: 1.5″, 2″, 2.5″

Aluminum:

  • Gauge options: .080 or .100
  • Channel heights: 1.5″, 2″, 2.5″

Stainless:

  • Gauge: 16 gauge
  • Channel heights: 2″

3 Diamond Plank — 7” Width

3-Diamond-Plank-gratingGrip-Strut-Plank-safety-grating-3-diamond

Carbon/Galvanized Steel:

  • Gauge options: 14 or 12 gauge
  • Channel heights: 1.5″, 2″, 2.5″, 3″

Aluminum:

  • Gauge options: .080 or .100
  • Channel heights: 1.5″, 2″, 2.5″, 3″

Stainless:

  • Gauge: 16 gauge
  • Channel heights: 2″

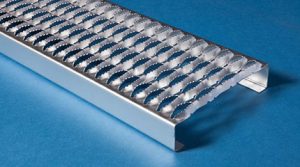

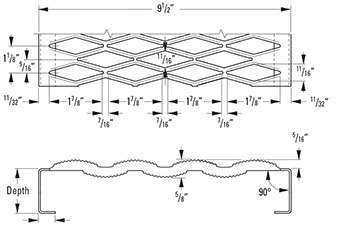

4 Diamond Plank — 9 1/2” Width

4-Diamond-Plank-gratingGrip-Strut-Plank-safety-grating-4-diamond

Carbon/Galvanized Steel:

  • Gauge options: 14 or 12 gauge
  • Channel heights: 1.5″, 2″, 2.5″, 3″

Aluminum:

  • Gauge options: .080 or .100
  • Channel heights: 1.5″, 2″, 2.5″, 3″

Stainless:

  • Gauge: 16 gauge
  • Channel heights: 2″

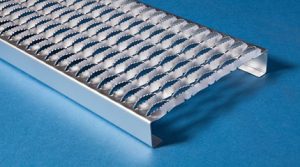

5 Diamond Plank — 11 3/4” Width

5-Diamond-PlankGrip-Strut-Plank-safety-grating-5-diamond

Carbon/Galvanized Steel:

  • Gauge options: 14 or 12 gauge
  • Channel heights: 1.5″, 2″, 2.5″, 3″

Aluminum:

  • Gauge options: .080 or .100
  • Channel heights: 1.5″, 2″, 2.5″, 3″

Stainless:

  • Gauge: 16 gauge
  • Channel heights: 2″

8 Diamond Plank — 18 3/4” Width

8-Diamond-Plank-Grating

Grip-Strut-Plank-safety-grating-8-diamond

Carbon/Galvanized Steel:

  • Gauge options: 14 or 12 gauge
  • Channel heights: 1.5″, 2″, 2.5″, 3″

Aluminum:

  • Gauge options: .080 or .100
  • Channel heights: 1.5″, 2″, 2.5″, 3″

Stainless:

  • Gauge: 16 gauge
  • Channel heights: 2″

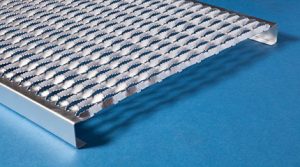

10 Diamond Plank — 24” Width

10-Diamond-Plank-GratingGrip-Strut-Plank-safety-grating-10-diamond



Carbon/Galvanized Steel:

  • Gauge options: 14 or 12 gauge
  • Channel heights: 1.5″, 2″, 2.5″, 3″

Aluminum:

  • Gauge options: .080 or .100
  • Channel heights: 1.5″, 2″, 2.5″, 3″

Stainless:

  • Gauge: 16 gauge
  • Channel heights: 2″

Marco is proud to provide the most comprehensive line of safety grating products including diamond, perf safety grating, and tread grip with slip-resistant surfaces. We have a complete understanding of each product and its features and benefits so we can recommend the best solution for your company.

We are the number one go-to for grating products, therefore we also stock bar grating and fiberglass grating.

Contact Us for your Diamond Plank Safety Grating Quote Today

Contact Marco Specialty Steel to learn more about our extensive selection of stock and custom diamond-grip plank grating products and to receive a no-obligation quote.
