Tread Grip Ladder Rungs

Traction-Tread-ladder-rungs, safety grating Tread Grip Ladder Rungs

Tread Grip ladder rungs are small channel-shaped sections. They are covered with small perforated dimples and produced by a cold forming process. Tread Grip ladder rungs feature a hand-overhand friendly surface with moderate slip resistance. Products are sold at inefficient lengths and are well suited to fabricators of ladders. Vehicle applications are an option.  Available in 2, 3, or 4 hole configurations.

RESOURCE LIBRARY DOCS & SPECS    FABRICATION SERVICES

Tread Grip Ladder Rung Featurestraction-tread-safety-grating-ladder-rungs

  • Hand-overhand friendly surface
  • Well suited to fabricators of ladders
  • Moderate slip resistance
  • Fast installation
  • Economical
  • Versatile
  • Safe dimpled surface
  • Vehicle applications are an option

2 Hole Ladder Rung

Traction-Tread-2-hole-Ladder-Rungs

  • Hot rolled, pickled and oiled carbon steel: 13 gauge (1.2 lbs./ft.)
  • Aluminum alloy 5052-H32: .125” (0.5 lbs./ft.)
  • 1 1/4” wide x 11/2” high x 48” or 60” long

3 Hole Ladder Rung

Traction-Tread-3-hole-Ladder-Rungs

  • Hot rolled, pickled and oiled carbon steel: 13 gauge (1.3 lbs./ft.)
  • Aluminum alloy 5052-H32: .125” (0.5 lbs./ft.)
  • 15/8” wide x 11/8” high x 48” or 60” long

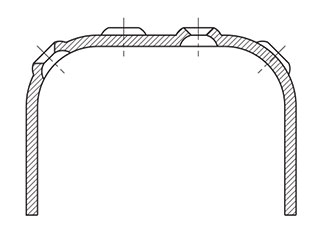

4 Hole Ladder Rung

Traction-Tread-4-hole-Ladder-Rungs

  • Hot rolled, pickled and oiled carbon steel: 13 gauge (1.5 lbs./ft.)
  • Aluminum alloy 5052-H32: .125” (0.7 lbs./ft.)
  • 21/4” wide x 11/2” high x 48” or 60” long

Safe allowable design loads shown are concentrated at center of span on simple beam
The minimum safety factor = 2.0

Marco, The Grating Specialists

Marco Specialty Steel is proud to be a Tread Grip supplier and fabricator of the most comprehensive line of safety grating products including Diamond Safety GratingPerf Safety Grating, and Tread Grip with slip-resistant surfaces.

We are also the number one go-to for grating products, therefore we stock bar grating and fiberglass grating.

Learn More About Tread Grip Ladder Rungs Products

Discover the difference Tread Grip products can make at your worksite. Contact us for additional information and a no-obligation quote today.
